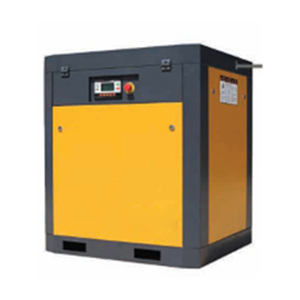

SCREW COMPRESSOR

SCREW COMPRESSOR

SCREW COMPRESSOR

Technical Data : Free air deliver/Discharge pressure (m3/min/Mpa) 3.2/0.7, 2.9/0.8, 2.6/1.0,2.2/1.2 Free air deliver/Discharge pressure (CFM/PSI) 113/102, 102/116, 92/145,78/174 “No.of compression stage single stage” Drive method Multivee belt “Electricity (V/ph/Hz) 380/3/50” Power (KW/HP) 18.5/25 “Starting method Y-Δstarter” Standard accessories : Included refrigerated air dryer (model AH-15SG) Included air tank 1000 liter (Model )1.0/1.0)
